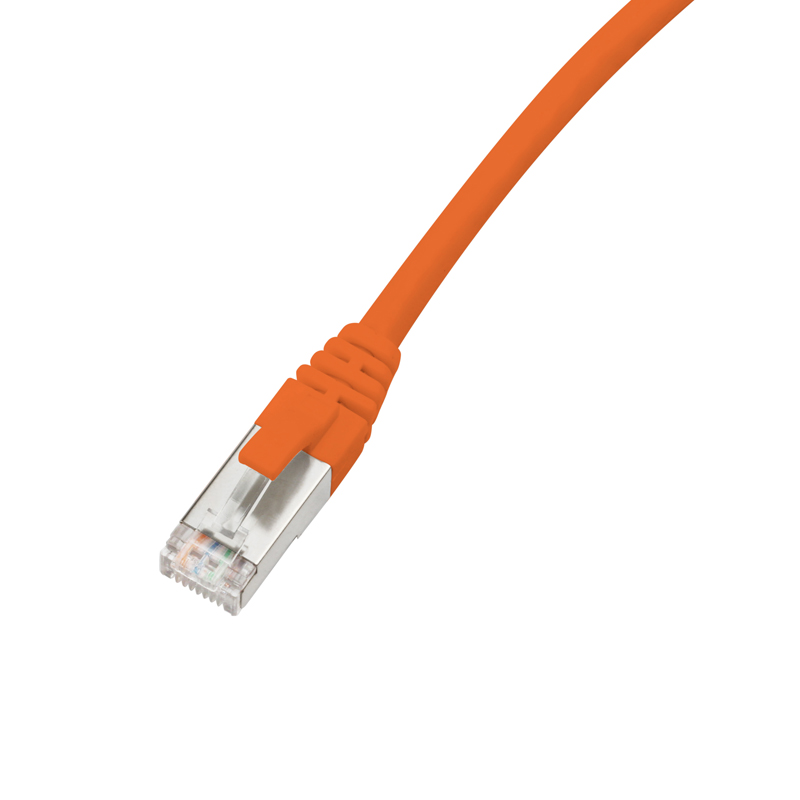

Kabel CAT6 SFTP Patch Cord
- Conductor: AWG 26 (8.0*7.0*0.16mm)
- Conductor Material: Bare Copper,Stranded Wire 7.0*0.16mm
- Jacket Material: LSZH/PVC/PTE/PUR
- Jacket Printing: Printed Length Counter At Every Meter of Cable
- Cable OD External PVC Jacket: 5.0mm / 6.0mm.
- Insulation HDPE Conductor Insulation: 0.88±0.02mm
- Standard Compatibility With Standards: ANSI/TIA/EIA-568-C.2, ISO/IEC
- Certificates: UL, CE, REACH, RoHS
- Transfer Rate: Operation Up To 250Mhz,1000Mbps
- Quality: 100% Factory Tested
- OEM Service: Can Be Customized To Your Specific Requirements
Description
Shielded SSTP CAT 6 Ethernet Network Patch Cable
CAT 6A RJ 45 wire ethernet cable is double shielded twisted pair type, it’s a standard cable for the Gigabit Ethernet and other networking protocols.And compatible CAT6 CAT5E CAT3 Patch cable, cat 6a shielded cable features twisted pair, separate wire shield, and external shield for maximum EMI protection, shielded connector also plays a protective role. Category 6a patch cord is usually used in structured cabling system, the max speed up to 10G. Compare with CAT6 cable,cat6a has better protection against alien crosstalk.
This CAT6A ethernet cord designed for computers, hubs, switches, routers, DSL/cable modems and patch panels in Gigabit datacenter applications.
Solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards.
